Why Long Toilet Flush Button Push Rods Need a Guide and Anti-Slip Rubber Tips

Toilet flush buttons may look simple, but the stability and alignment of the push rods can have a noticeable effect on how smoothly the flushing mechanism works.

For standard toilet cisterns, the push rods are usually relatively short and can operate properly without additional accessories. However, when a toilet tank requires longer push rods, even a small deviation near the top of the rod can become much more noticeable at the bottom.

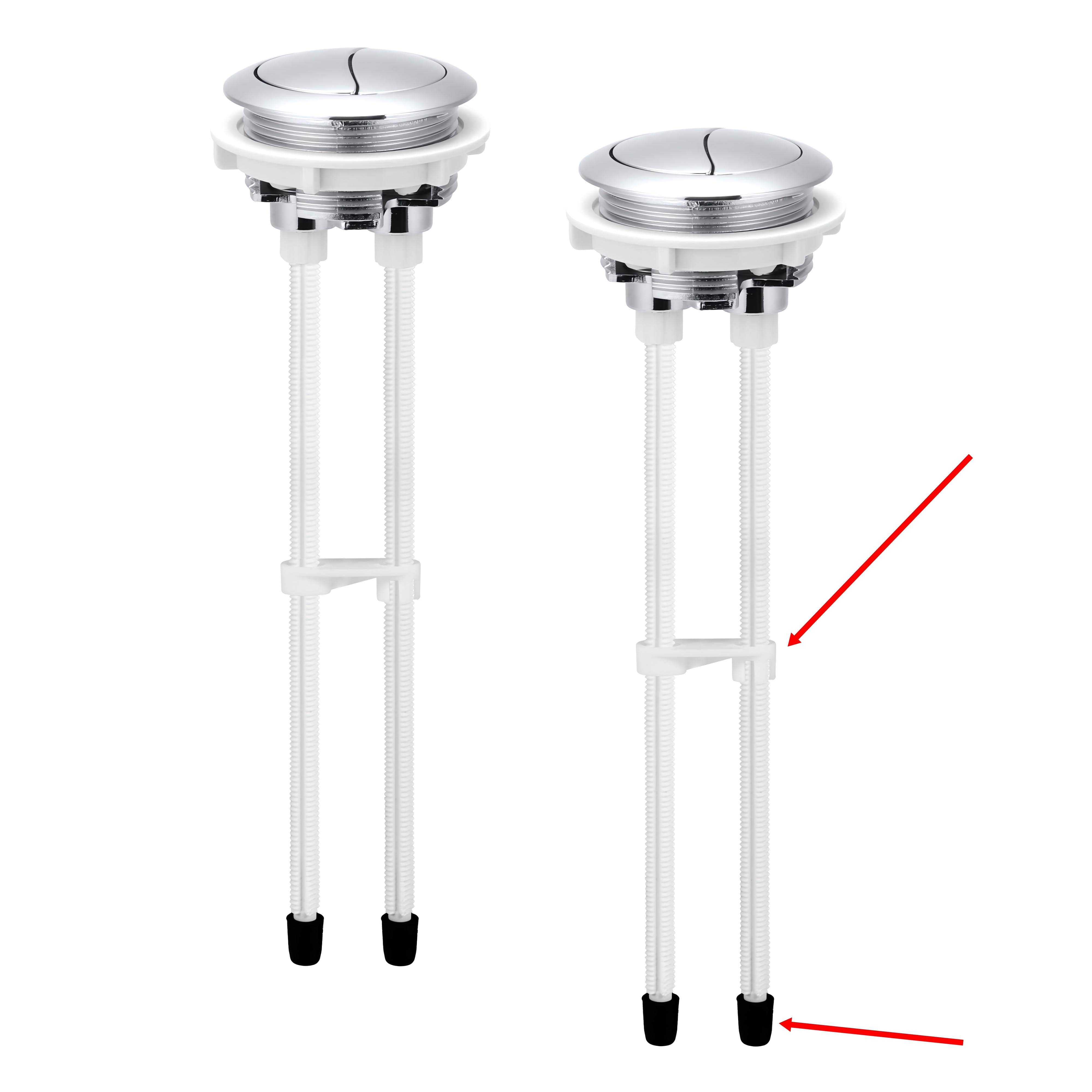

For this reason, two optional accessories can be added to long toilet flush button push rods: a push rod guide and anti-slip rubber tips.

What Does a Push Rod Guide Do?

The main purpose of a toilet flush button push rod guide is to keep the two push rods properly aligned.

When the push rods are short, a slight angle at the top usually causes only a small displacement at the bottom. However, as the push rod length increases, the same small angle can result in much greater sideways movement.

This may cause the push rods to contact the flush valve at an incorrect position or angle, which can affect the pressing feel and the stability of the flushing mechanism.

The push rod guide limits lateral movement and helps keep the push rods vertical from the flush button down to the flush valve.

At Jielin Plumbing, we generally recommend using a push rod guide when the push rod length exceeds approximately 150 mm.

This is especially useful for high ceramic cistern lids or other toilet tank structures where extra-long push rods are required.

The Push Rod Guide Must Match the Flush Button

A push rod guide is not a completely universal component.

For round toilet flush buttons, the distance between the two push rods varies depending on the ceramic lid opening size that the button is designed to fit.

For our common round button configurations:

• 40 mm ceramic lid opening: push rod spacing is approximately 18.2 mm
• 50 mm ceramic lid opening: push rod spacing is approximately 25 mm
• 60 mm ceramic lid opening: push rod spacing is approximately 28 mm

Because the push rod spacing is different, the width of the push rod guide must match the corresponding flush button.

If the guide is too wide, it can force the two push rods outward. If the guide is too narrow, it can pull the rods inward.

In either case, the guide may create additional resistance instead of improving stability.

An incorrectly matched push rod guide may cause:

• a heavier or uneven pressing feel;
• increased friction between the push rods and the guide;
• difficulty pressing the flush button;
• slow or incomplete button return after flushing.

Therefore, when selecting a push rod guide for a toilet flush button, both the ceramic lid opening size and the corresponding push rod spacing should be considered.

The correct guide should help maintain alignment without forcing the rods inward or outward.

What Are the Black Rubber Tips at the Bottom of the Push Rods?

The black components installed at the bottom of the push rods are anti-slip rubber tips.

Their main function is to increase friction between the push rods and the top of the flush valve.

Inside a toilet cistern, the flush valve is continuously exposed to water and moisture. Over time, the surface of the flush valve may become relatively slippery.

If a bare plastic push rod presses directly against this surface, the contact point may gradually move during repeated operation.

By adding an anti-slip rubber tip, the push rod can maintain better contact with the flush valve and stay closer to its intended pressing position.

Why Is Stable Contact Important?

Stable contact between the push rod and the flush valve helps maintain a consistent pressing feel.

If the push rod continuously slips away from the correct contact position, it may begin pressing the flush valve at an angle instead of vertically.

Over time, this may create unnecessary stress on the flush button mechanism and affect its operating stability.

The rubber tip helps reduce this sideways movement by increasing friction at the contact point.

For long push rod applications, this works together with the push rod guide:

The push rod guide controls the direction of the rod, while the anti-slip rubber tip stabilizes the contact point at the bottom.

When Should These Accessories Be Used?

For many standard toilet cisterns, these two accessories may not be necessary.

However, they are particularly useful when:

• the toilet flush button requires push rods longer than approximately 150 mm;
• the ceramic cistern lid is positioned relatively high above the flush valve;
• the push rods have noticeable sideways movement;
• the contact surface on the flush valve is relatively slippery;
• more stable and consistent button operation is required.

Selecting the correct accessories according to the toilet cistern structure can help improve the overall performance of the flushing mechanism.

Small Accessories Can Make a Big Difference

A push rod guide and anti-slip rubber tips are small components, but they can make a noticeable difference in long push rod toilet flush button applications.

The push rod guide helps keep the rods vertical and prevents excessive sideways movement.

The anti-slip rubber tips increase friction between the push rods and the flush valve, helping the rods stay in the correct operating position.

Together, they provide a simple solution for improving the stability, pressing feel, and long-term operation of toilet flush buttons with extra-long push rods.

At Xiamen Jielin Plumbing Co., Ltd., different push rod lengths, push rod guides, and related toilet flush button accessories can be configured according to ceramic lid opening sizes, flush valve structures, and different toilet cistern applications.
