U7005 Rubber-Sealed Urinal Drain Connector Kit for Floor or Wall Drainage

    PRODUCT DESCRIPTION

Product Name: U7005 Rubber-Sealed Urinal Drain Connector Kit for Floor or Wall Drainage

Connect the Urinal to the Building Drain

Designed as a commercial restroom urinal drain connector, the U7005 carries wastewater from the ceramic urinal outlet into a compatible drainage connection.

In a vertical discharge layout, it can serve as a floor-drain urinal connector kit. Where the urinal discharges horizontally toward the wall, the same connector design can be positioned as a wall-outlet urinal waste connector, provided that the ceramic outlet, drain socket and fixing points all match.

This is a waste-side fitting. It is not the flush-water inlet connector shown above the urinal.

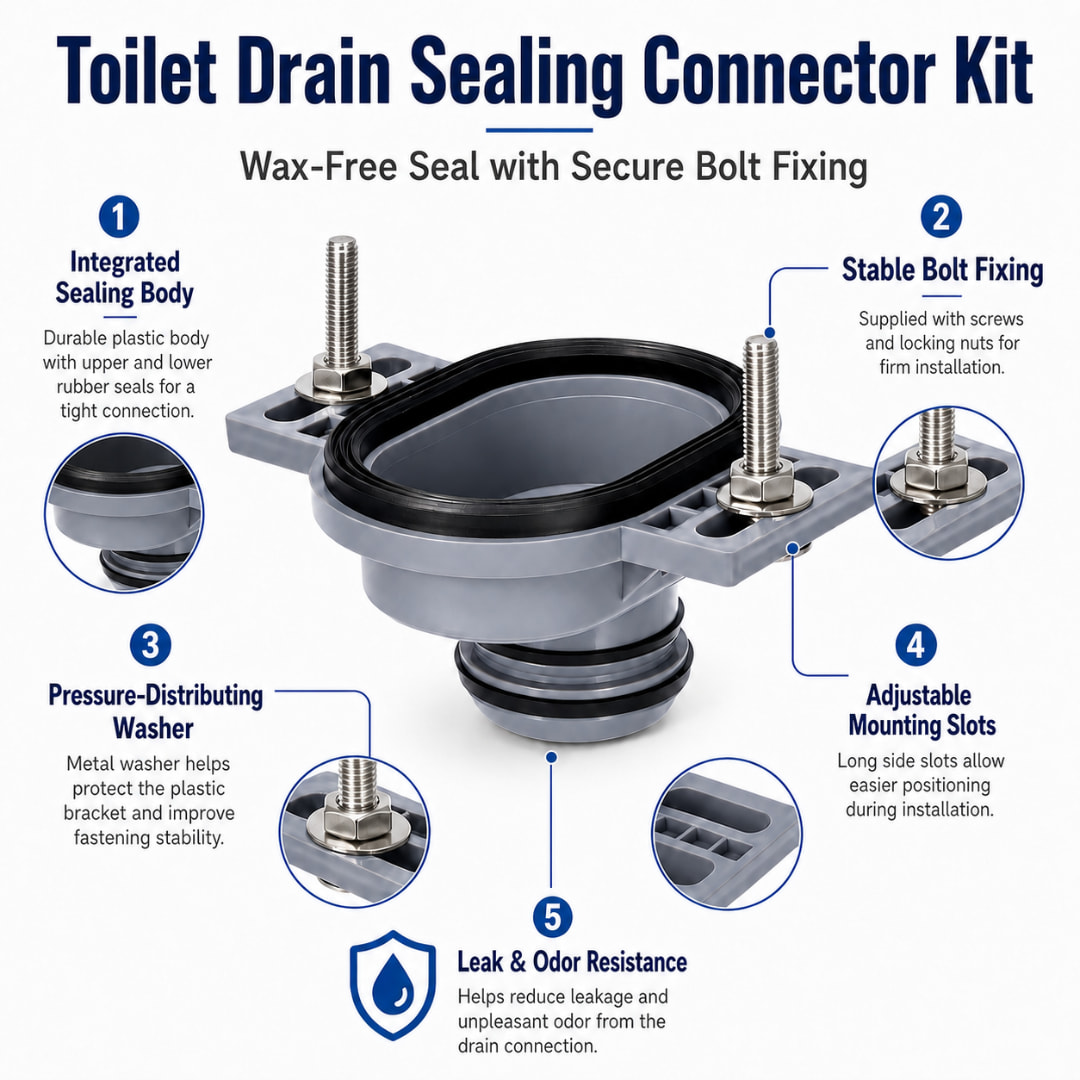

Rubber-Sealed, Wax-Free Connection

The molded plastic body incorporates an oval upper gasket for the urinal interface and two lower rubber sealing rings for the drainage connection. This wax-free arrangement is designed to help contain wastewater and reduce drain odours when all mating surfaces are correctly sized, aligned and installed.

The elongated side slots allow limited positioning adjustment before tightening. Metal washers help distribute the clamping load across the plastic brackets, while the supplied countersunk bolts and hex nuts secure the connector in place.

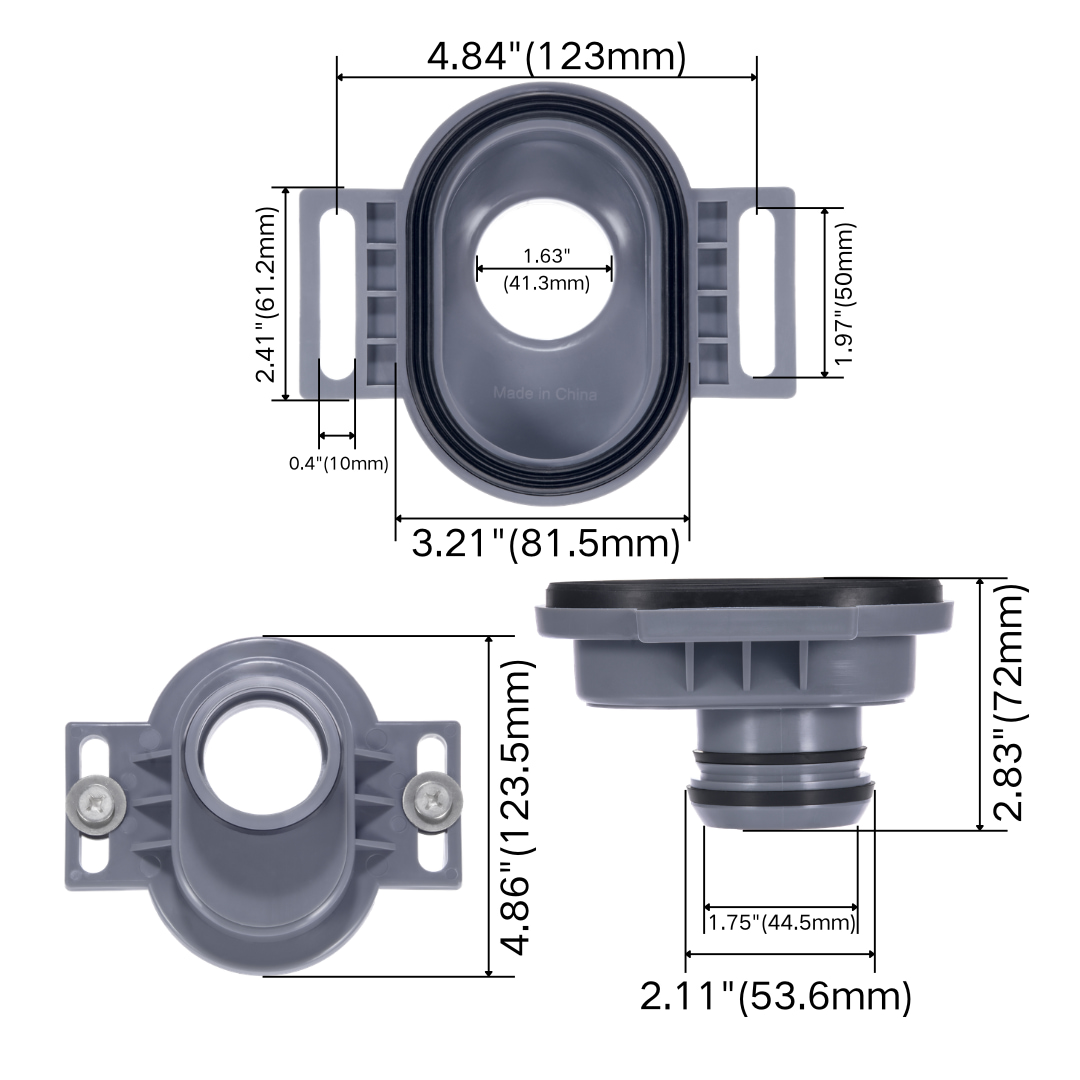

Reference Dimensions

Dimensions shown in the supplied product drawing include:

• Horizontal mounting reference between the side-slot centre lines: 123 mm / 4.84 in

• Connector body length: 123.5 mm / 4.86 in

• Upper sealing-body width: 81.5 mm / 3.21 in

• Overall connector height: 72 mm / 2.83 in

• Upper flow opening: 41.3 mm / 1.63 in

• Lower connection outside diameter: 53.6 mm / 2.11 in

• Lower connection inside diameter: 44.5 mm / 1.75 in

• Side bracket height: 61.2 mm / 2.41 in

• Illustrated slot length: 50 mm / 1.97 in

• Illustrated slot width: 10 mm / 0.40 in

These are reference drawing dimensions. Production tolerances and the mating urinal and pipe dimensions should be confirmed before fit approval.

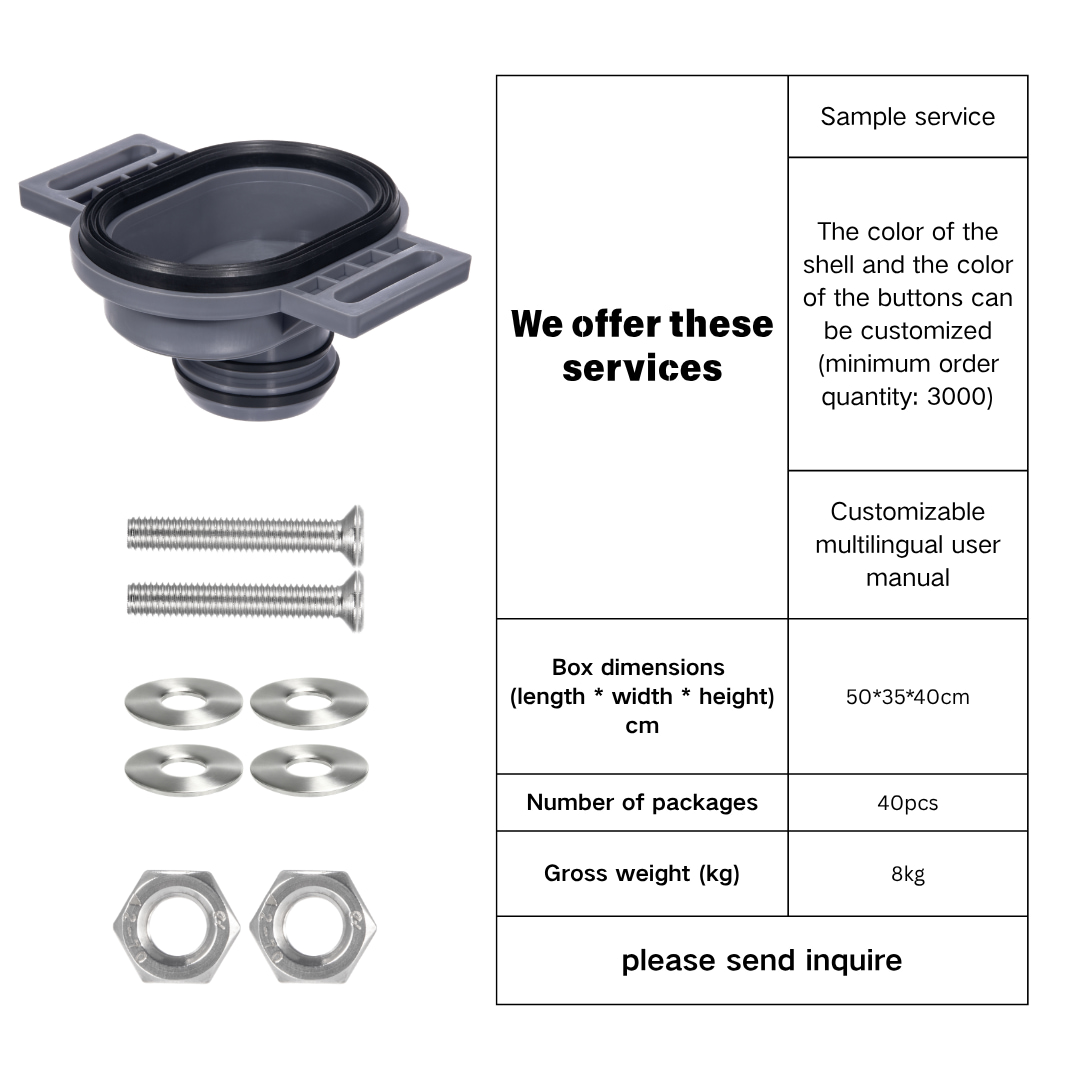

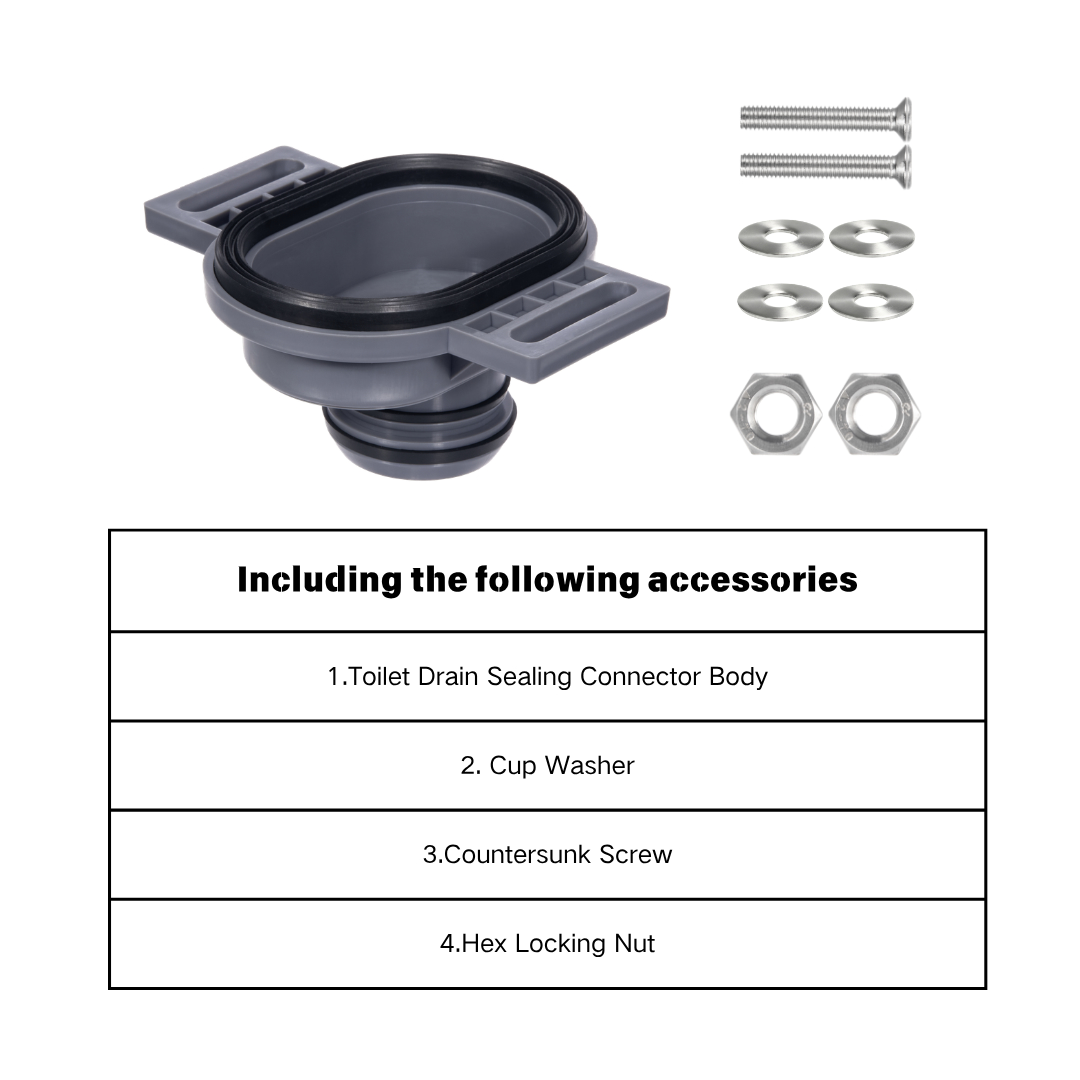

Kit Contents

Each illustrated kit contains:

• 1 urinal drain connector body with upper and lower seals

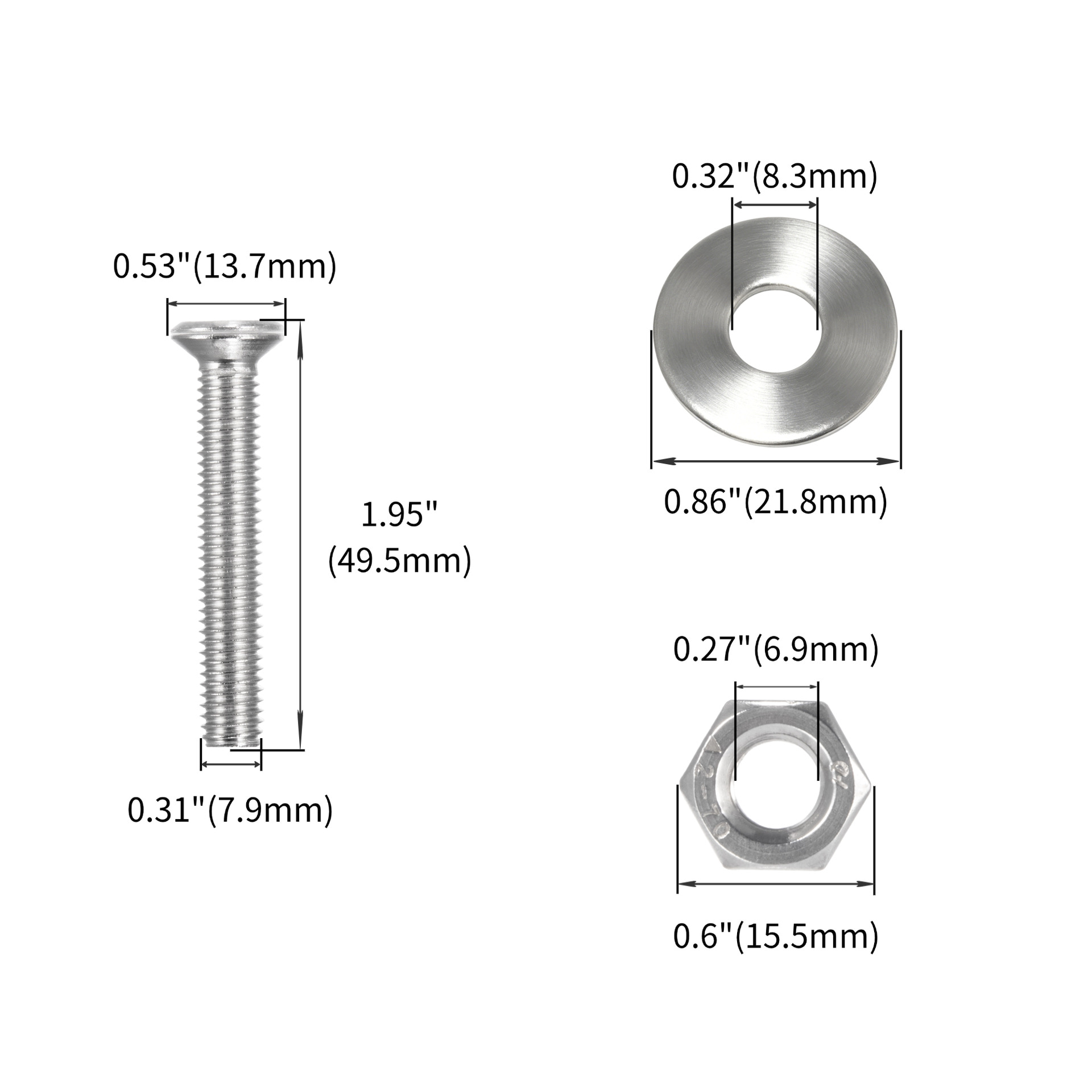

• 2 countersunk fixing bolts

• 4 curved metal washers

• 2 hex nuts

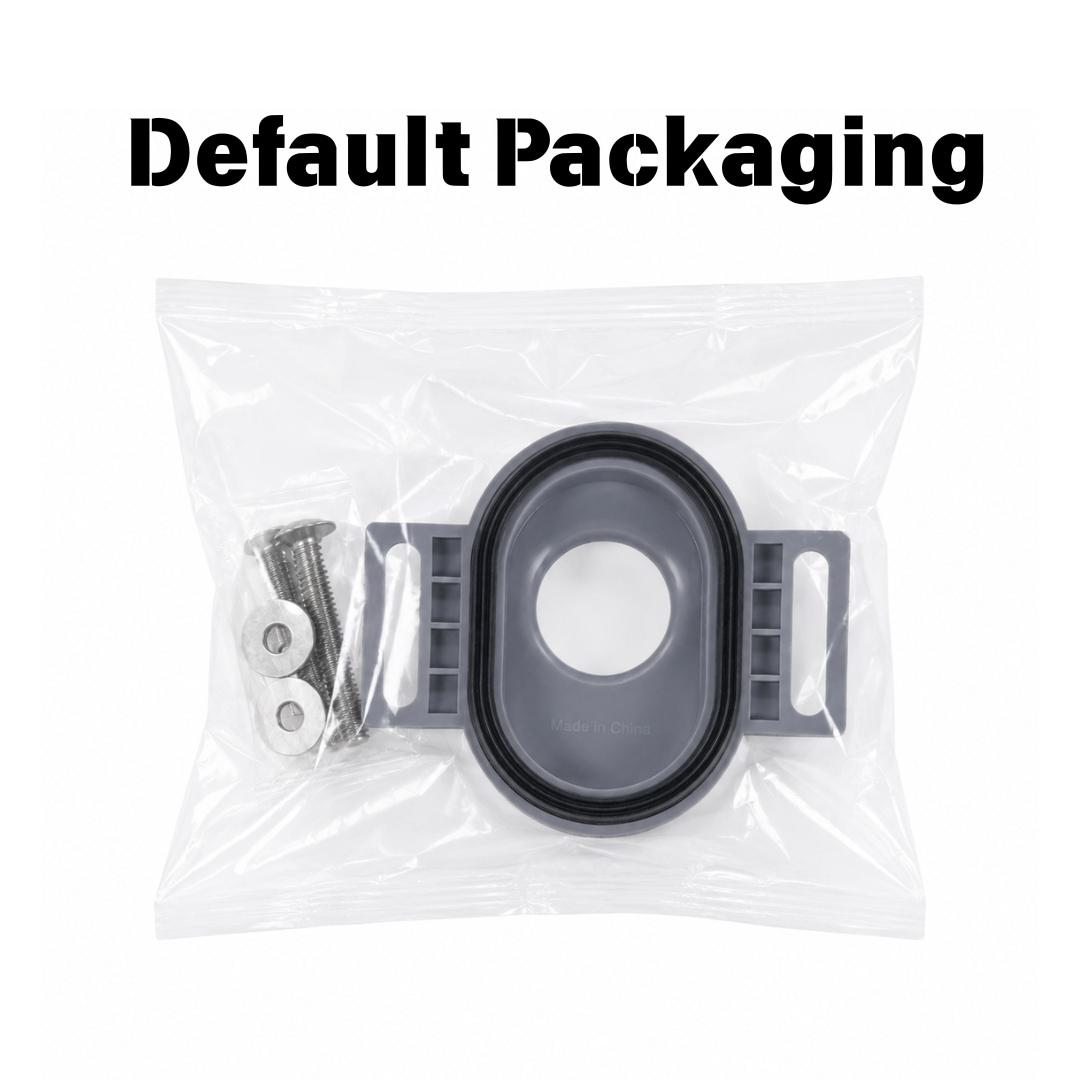

The default packaging shown is one complete kit in a clear poly bag.

Replacement-Market Selection

When selecting a facility maintenance urinal drain replacement kit, do not rely only on product appearance, the urinal brand or its country of manufacture. Korean-made and other exported urinals may use different outlet shapes, fixing positions and pipe interfaces across models or production batches.

To assess a urinal waste connector for renovation projects, compare the original connector or installed urinal against:

• Ceramic outlet shape and sealing surface

• Flow-opening and lower pipe-connection diameters

• Fixing-slot spacing and available adjustment

• Floor-drain or wall-drain orientation

• Connection depth and installation clearance

• Position of the existing drainage pipe

For importers evaluating a urinal drain connector for plumbing distributors, send the original part, clear installed-condition photographs or a dimensioned drawing. A sample installation test is recommended before a volume replacement order.

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

Is the U7005 a urinal flush pipe connector?

No. The U7005 is installed on the waste side of the urinal, between the ceramic discharge outlet and the building drainage pipe. It does not connect the flush valve or water inlet to the urinal.

Can the U7005 replace any Korean-made or imported urinal connector?

No universal fit is claimed. Urinals produced for different brands, markets or production batches may have different outlet shapes, fixing positions and drainage interfaces. Compare the original part and all critical dimensions, then test a sample before confirming compatibility.

Can the same connector be used with both floor and wall drainage?

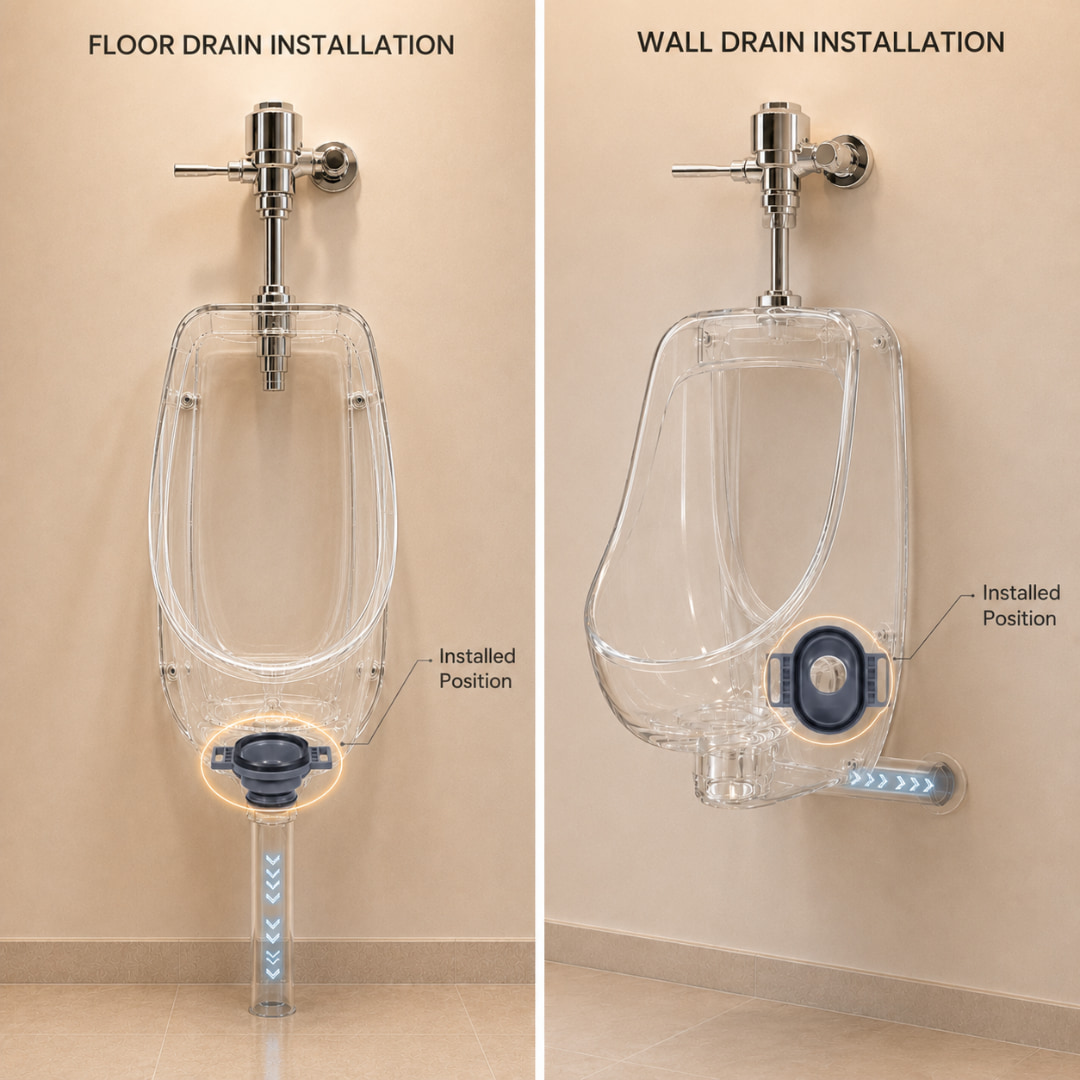

The supplied application illustration shows the connector in both vertical floor-drain and horizontal wall-drain layouts. Actual suitability depends on the urinal outlet direction, drainage-pipe position, fixing points, connection diameters and available clearance.
