U7002 Short Urinal Inlet Spud with Integrated 90° Flush Outlet | 15/16-16 NPSM

    PRODUCT DESCRIPTION

Product Name: U7002 Short Urinal Inlet Spud with Integrated 90° Flush Outlet | 15/16-16 NPSM

Integrated Top-Entry Water Path

Designed as a commercial restroom urinal inlet spud, the U7002 combines the external water-pipe connection and internal flushing outlet in one compact assembly.

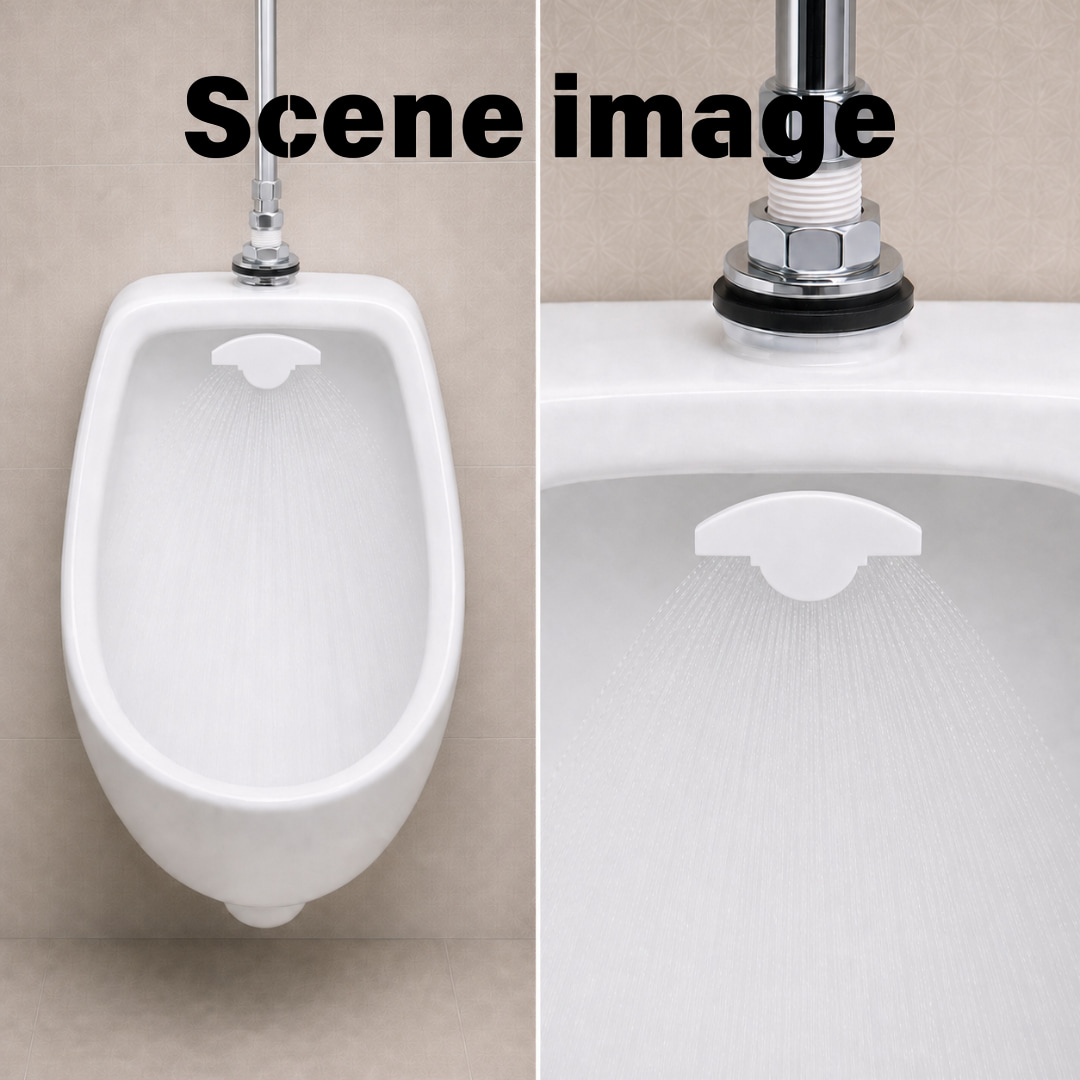

The fitting passes through the urinal’s top inlet opening. Its threaded clamping components and black gasket secure the connection at the ceramic surface, while the exposed hex-ended inlet connects to the external supply pipe. Inside the bowl, the white 90° elbow changes the flow direction and guides flushing water downward.

This direct operating path makes the U7002 a practical top-entry urinal water inlet fitting for compatible ceramic urinals.

Short Configuration with Defined Dimensions

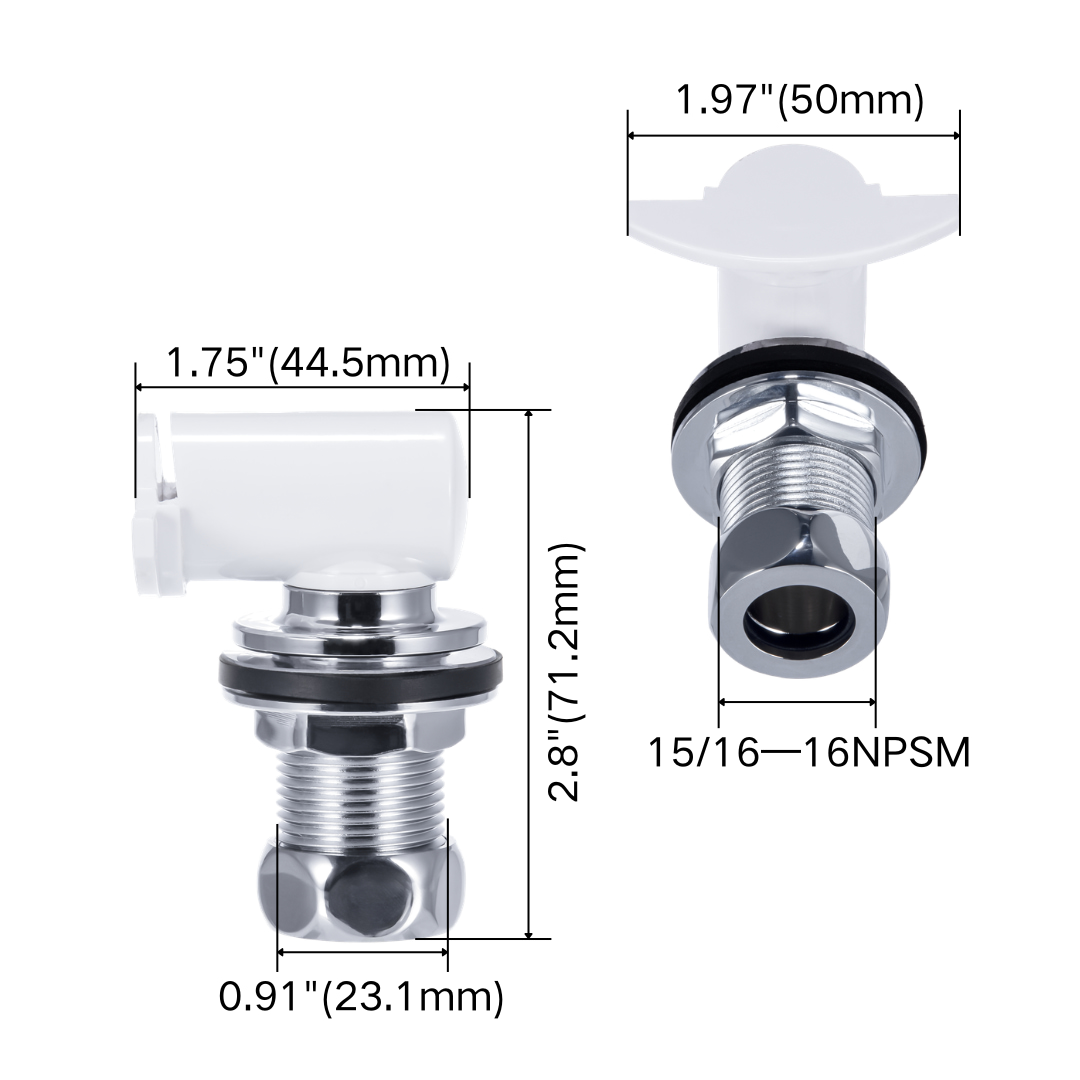

The short elbow section measures 1.75 inches (44.5 mm), while the complete fitting measures 2.8 inches (71.2 mm) in overall height. The white internal flush guide is 1.97 inches (50 mm) wide, and the lower hex section is approximately 0.91 inches (23.1 mm) wide.

These proportions position the U7002 as a short urinal spout for compact installations, although the ceramic opening, internal bowl clearance and supply-pipe position must still be checked before selection.

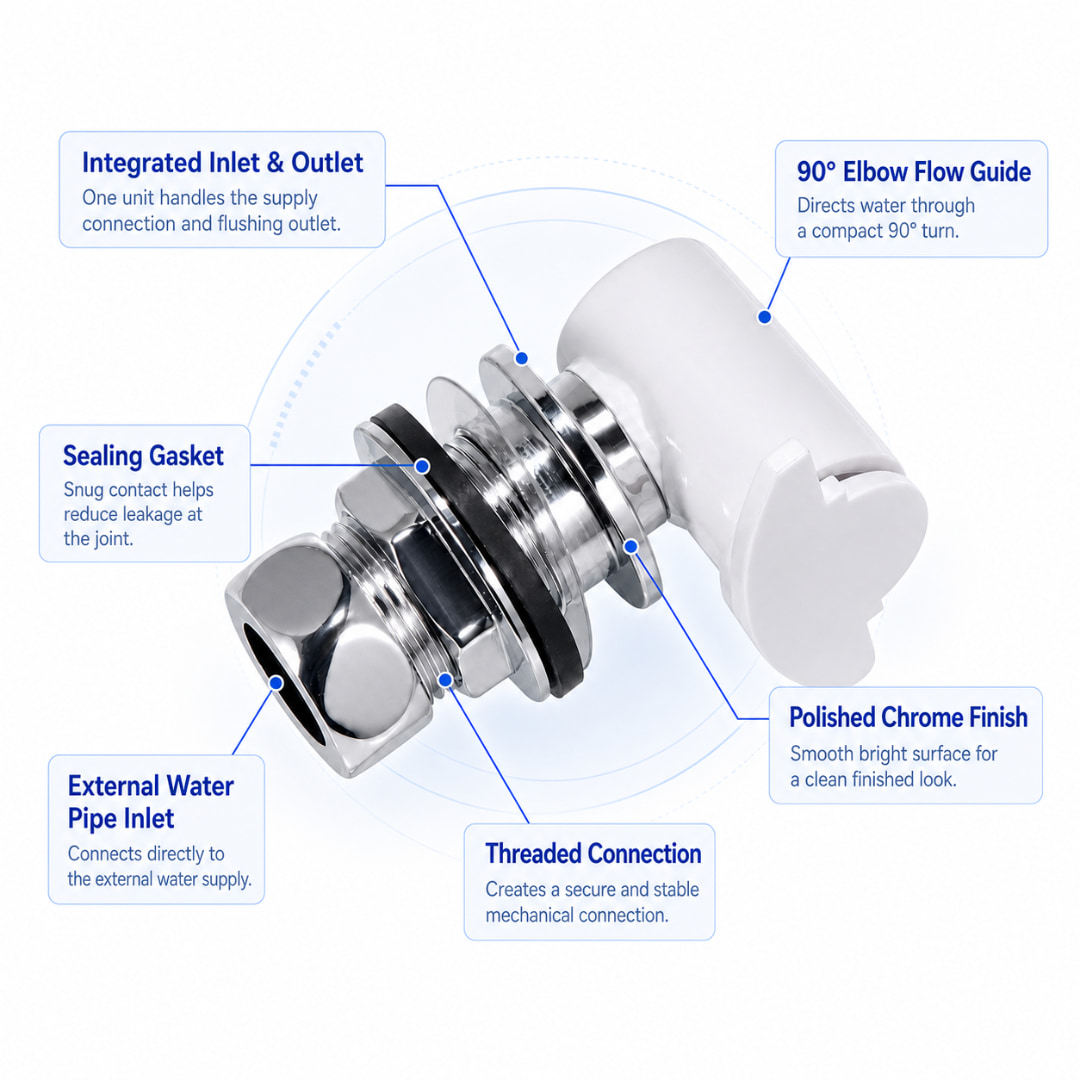

Threaded Connection and Sealing Structure

The connection uses a 15/16-16 NPSM thread. The threaded body provides mechanical clamping, while the supplied gasket maintains close contact with the mounting surface to help reduce leakage at the joint.

The polished chrome-finish exterior creates a clean appearance above the ceramic surface. The internal white guide forms the visible outlet inside the bowl and distributes the incoming flow, allowing the fitting to be evaluated as a public washroom urinal flush spreader.

Selection and Compatibility

When considering this product as a urinal inlet connector for renovation projects, compare all of the following with the existing fixture:

• 15/16-16 NPSM thread interface

• Top-entry mounting-hole size and sealing surface

• 71.2 mm overall fitting height

• 44.5 mm short elbow length

• 50 mm internal flush-guide width

• Clearance and orientation inside the urinal bowl

• External water-supply pipe position

The U7002 should not be treated as a universal replacement solely because another fitting has a similar appearance.

Project Packaging and Customization

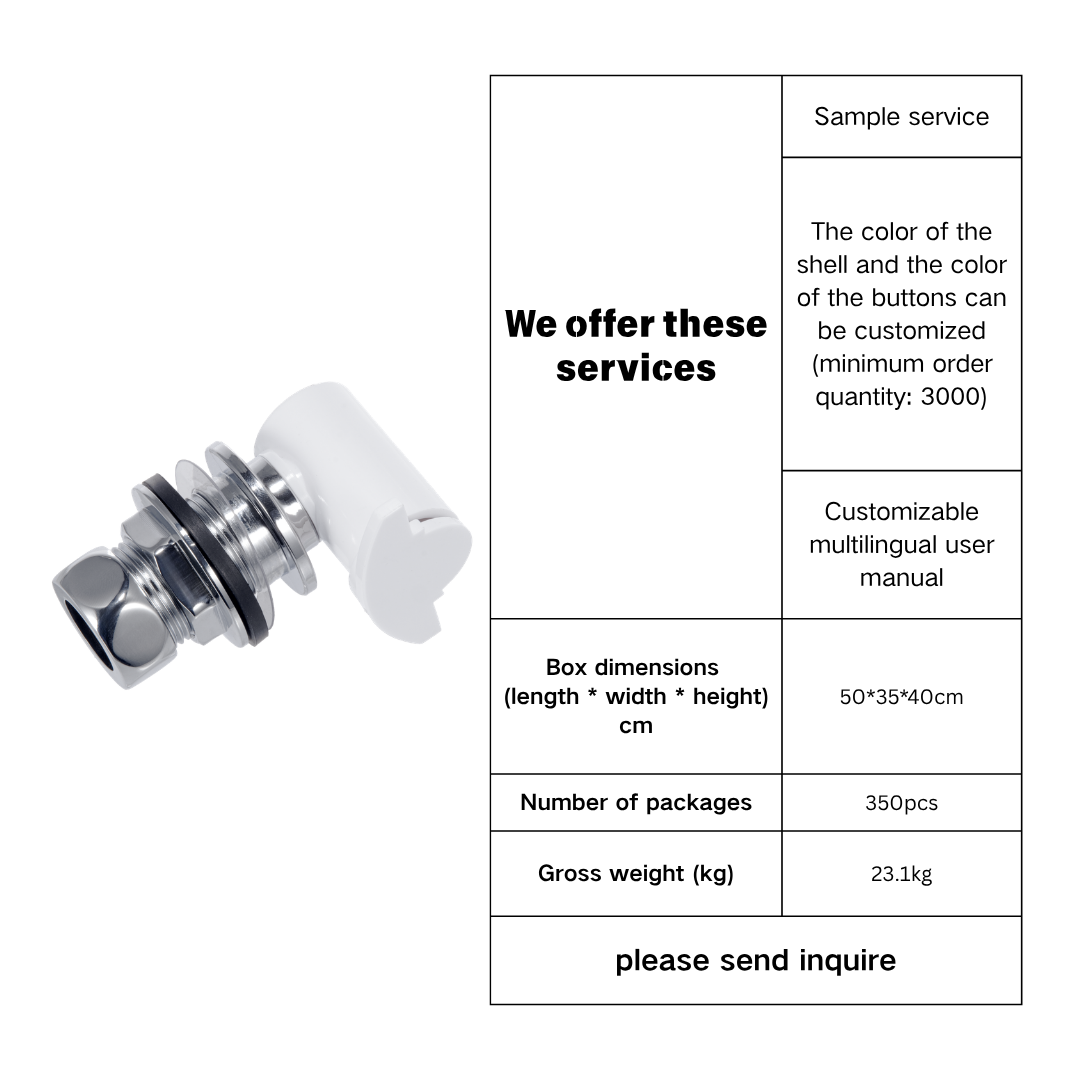

For buyers sourcing a urinal inlet fitting for bulk project procurement, the supplied packing information lists:

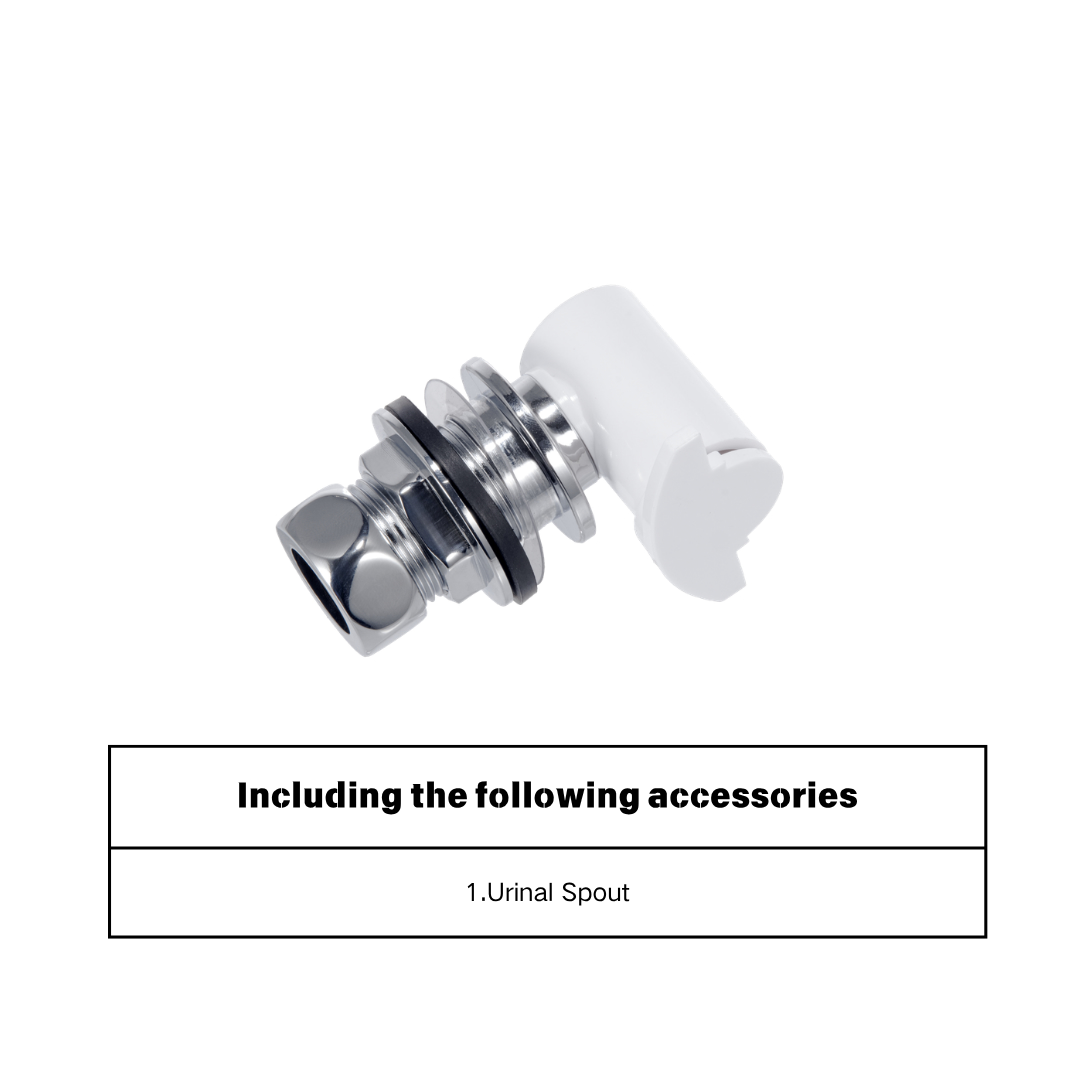

• Included component: 1 urinal spout

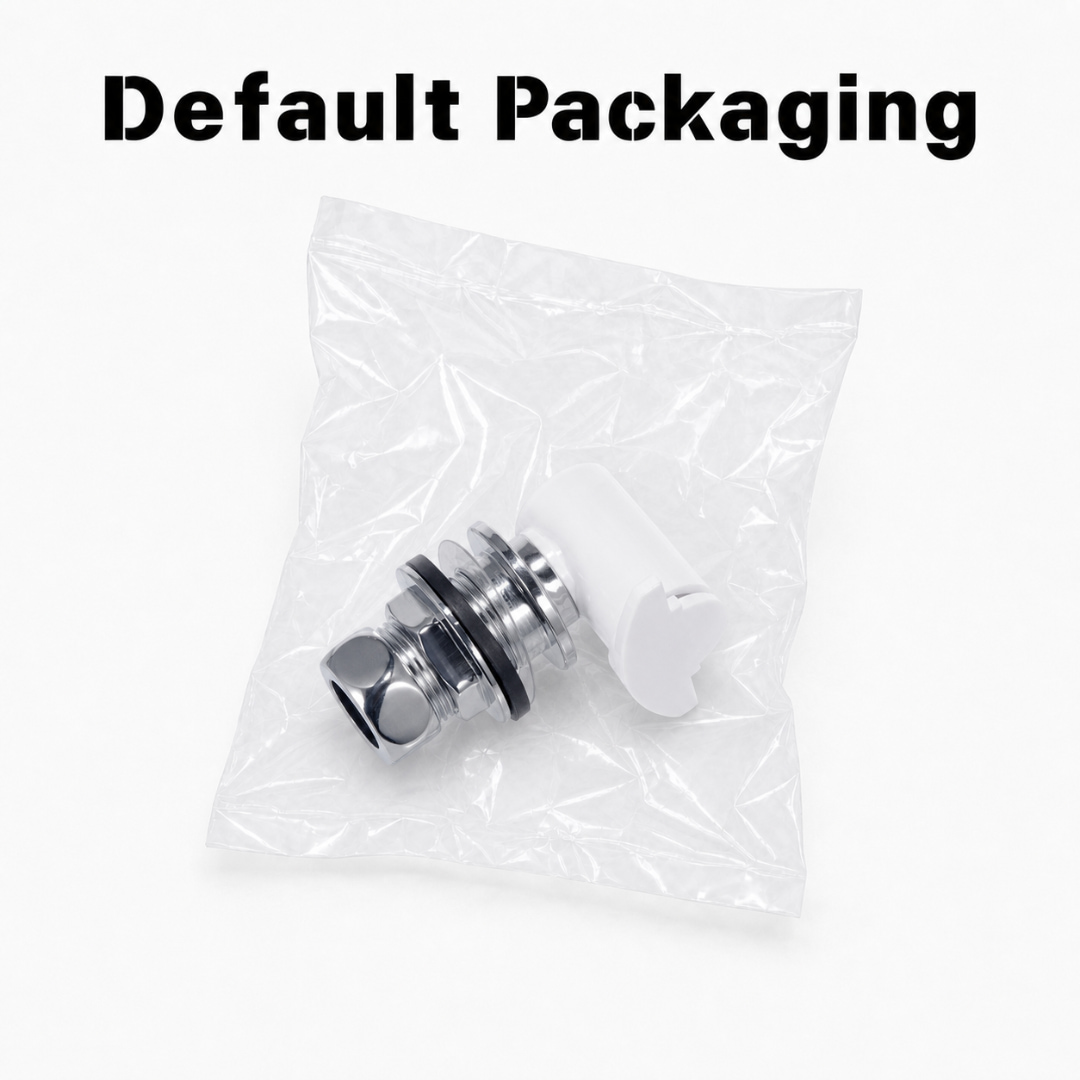

• Default unit packaging: Individual clear poly bag

• Master-carton dimensions: 50 × 35 × 40 cm

• Packing quantity: 350 pieces

• Gross carton weight: 23.1 kg

• Sample service: Available

• Multilingual user manual: Customizable

• Color customization: Listed with a minimum order quantity of 3,000 pieces

Please confirm the applicable customizable components, available colors and current order terms before purchasing.

    PRODUCT ADVANTAGES

1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.

2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.

3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.

    FAQ

How can I check whether the U7002 fits my urinal?

Verify the 15/16-16 NPSM thread, top mounting-hole dimensions, ceramic sealing surface, external pipe position and available space inside the bowl. Also compare the product’s 71.2 mm overall height, 44.5 mm elbow length and 50 mm flush-guide width. Visual similarity alone does not confirm compatibility.

How does the U7002 connect and direct the flushing water?

The fitting mounts through the urinal’s top inlet opening. Its threaded clamping structure and gasket secure the joint, the exposed end connects to the external water-supply pipe, and the internal 90° elbow redirects water through the white flush guide into the bowl.

What packaging and customization services are available?

Each U7002 is shown in an individual clear poly bag. The listed master carton measures 50 × 35 × 40 cm and contains 350 pieces at a gross weight of 23.1 kg. Sample service and multilingual manual customization are listed, while color customization carries a stated MOQ of 3,000 pieces. Confirm current terms and eligible components when requesting a quotation.
